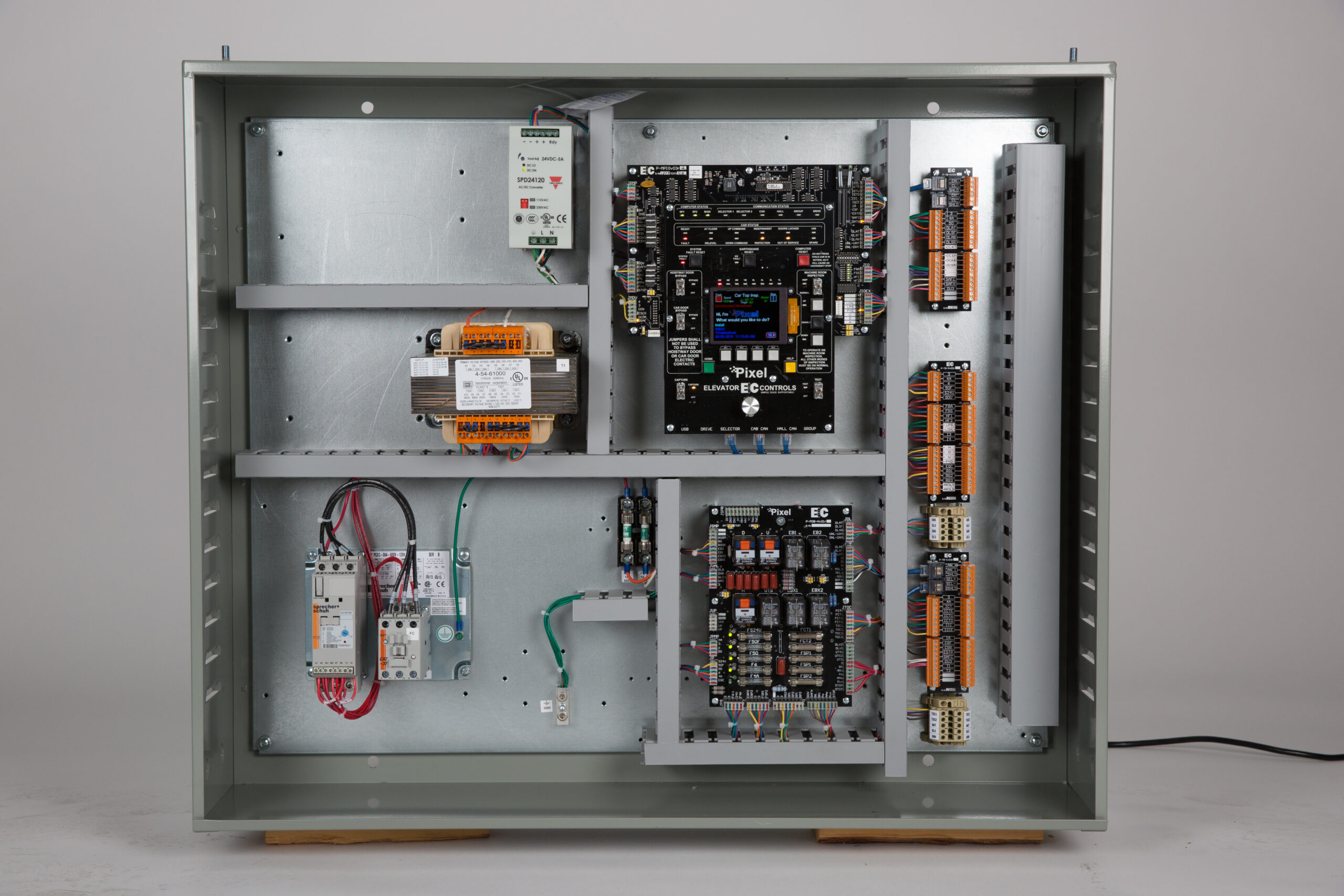

H-PAC LV Pixel Hydraulic Controller
When you’re in a hurry and require no in-house modifications or substitutions, the H-PAC LV Pixel Hydraulic Controller is your ideal choice. It’s pre-assembled and in stock, ready to be shipped to you within days.
The Pixel H-PAC LV is designed for the most common hydraulic elevator requirements. Engineered for prompt delivery, this controller ensures seamless operation with high-quality and code-compliant features. Whether you’re dealing with tight deadlines or looking for an efficient, dependable solution, the H-PAC LV delivers superior performance at a competitive price.
This pre-assembled unit is built to meet the expedited delivery market’s needs without compromising on reliability or functionality. From its robust compatibility with various motor and valve systems to its advanced interface capabilities, the H-PAC LV sets a new standard in hydraulic controllers.
Features
Five-Stop Field Programmable Control
Designed to handle up to five stops in line
Flexible programming for fewer stops as needed
Low-Voltage Versatility
Supports 208 VAC, 3-phase, 60 HZ input
Taps for 208, 220, and 240 VAC compatibility
Motor Protection
Siemens solid-state starter
Factory adjusted electronic motor overload protection tailored to your application
Code Compliant
Meets A17.1-2019/B44-19 standards
Field configurable for earlier standards, such as A17.1-2004/B44-2004
Advanced Door Systems
Features MOVFR 230 VAC door interface
Automatic gate and sliding passenger doors
Durable Design
Compact NEMA 1 enclosure for rugged field use<
Pre-wired car-top inspection station
Convenient car-top light, GFCI outlet, and 6-volt alarm bell
H-PAC LV Pixel Hydraulic Controller
- 35 to 100 FL amps max
- 80 starts/hr.
- Standard 4-coil single Maxton valve, 120 VAC, field configurable for standard 4-coil, 120 VAC EECO, Dover/TKE valve systems
- Landa Selector with 60 feet of Landa SS tape and mounting hardware. No Short floors less than six feet for a typical 125 fpm elevator
- 24V low-voltage fixture interface
- Compact 30” H x 36” W x 8” D NEMA 1 controller enclosure and car-top box
- Car and Hall CAN serial communication with Hall Call Standard connection cable package includes nodes and splitter connectors
- Pit floor interface programmed for 2nd landing return
Standard Interface Features
- Simplex
- Standard fire service phase I and II, 3-position switches pre-programmed for main return to 1st landing and alternate return to 2nd landing
- Top and bottom hoistway access with 2-position in-car enable switch
- C.E. Microcom PI (MAD PI option included) in car and lobby and Microcom Car Voice interface
- Discrete 24 V car lanterns with chime
- Nudging with reduced torque with buzzer
- Low oil and pressure switch interface
Customizable Options
Enhance your system with configurable kits to meet specific needs.
Ask for pricing
Ask for pricing
Ask for pricing
Order Now
Get the high-performance Pixel H-PAC LV controller for your next project. With prompt delivery and unmatched reliability, it’s the perfect choice for your hydraulic elevator needs.
Complete the form below or contact sales@elevatorcontrols.com | (800) 829-8106 for more details.
