Are your KONE MX10, NMX11, MX14 and NMX14 rail mounted machines ready for modernization? Vantage Elevator Solutions is here to help with RENEW™ MRL. The RENEW™ MRL package combines the GLR25S2, GLR35S2, and a Pixel MRL controller.
Adapt™ – Eco Series
Elevate your modernization strategy with Adapt™ – Eco Series, the industry’s premier complete replacement package designed specifically for Kone MRL systems.
This comprehensive modernization kit provides everything required to seamlessly replace Kone MX10, NMX11, MX14 and NMX14 machines, combining a high-performance permanent magnet AC gearless traction machine with the uniquely slim Pixel AC MRL controller.
Email renewtraction@vantageelevation.com for a quote on the Adapt™ – Eco Series.

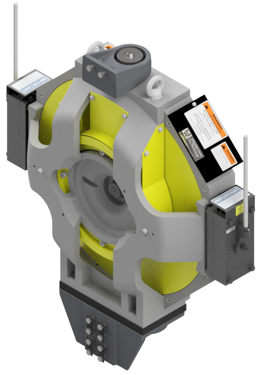

GLR-25S2
The GLR-25S2 is a direct mechanical replacement for the KONE MX10 & NMX11 rail mounted machines.

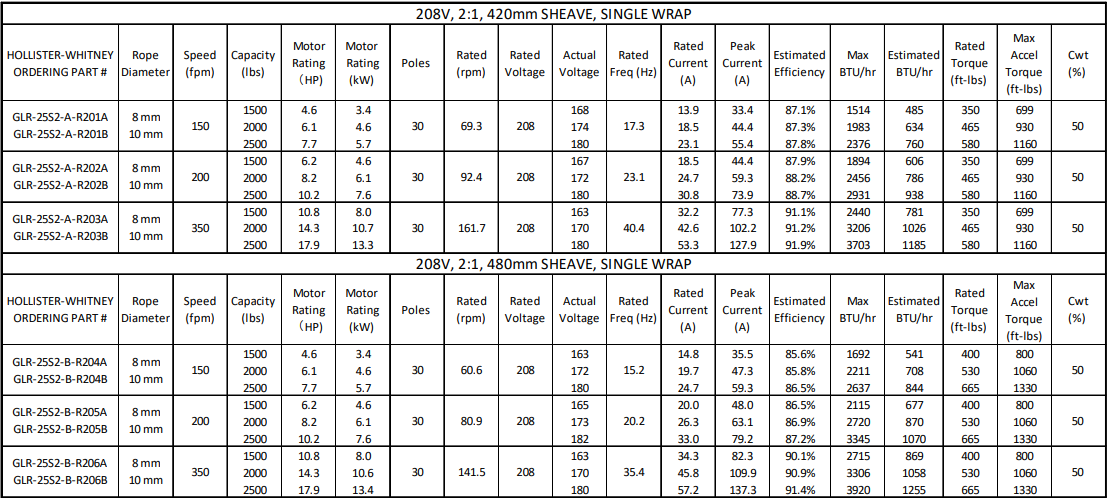

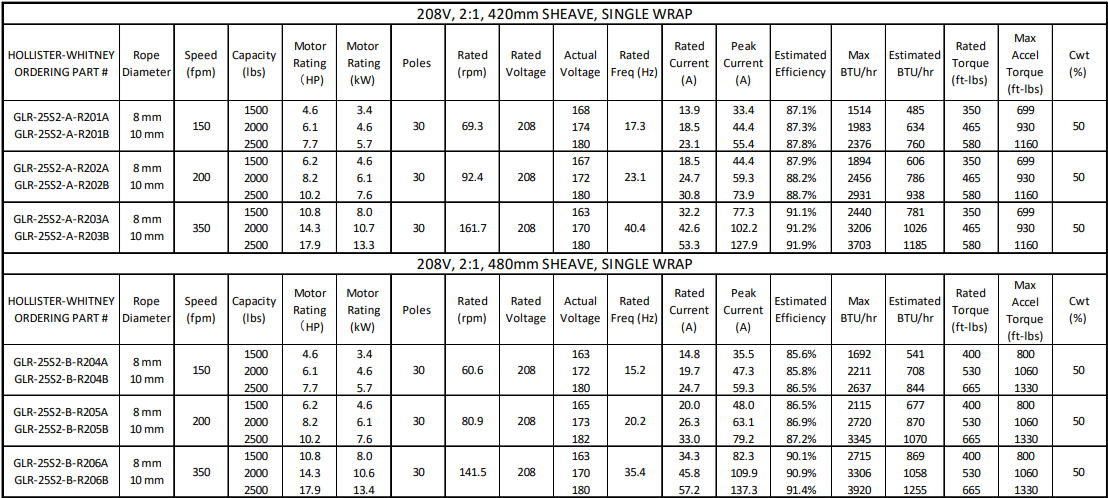

Specifications
• Speed: Up to 350 fpm
• Capacity: Up to 2,500 lbs.
• Roping: 2:1 Single Wrap Traction
• Rope Diameters: 8 mm and 10 mm
• Drive Sheave Diameters: 420 mm & 480 mm
• Line Voltage: 208/240 AC & 440/480 AC, 3 phase
• Machine Weight: 1,056 lbs.
• Encoder: Heidenhain 2048 Encoder (ECN 1313)

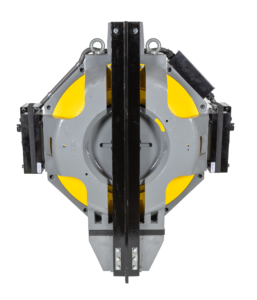

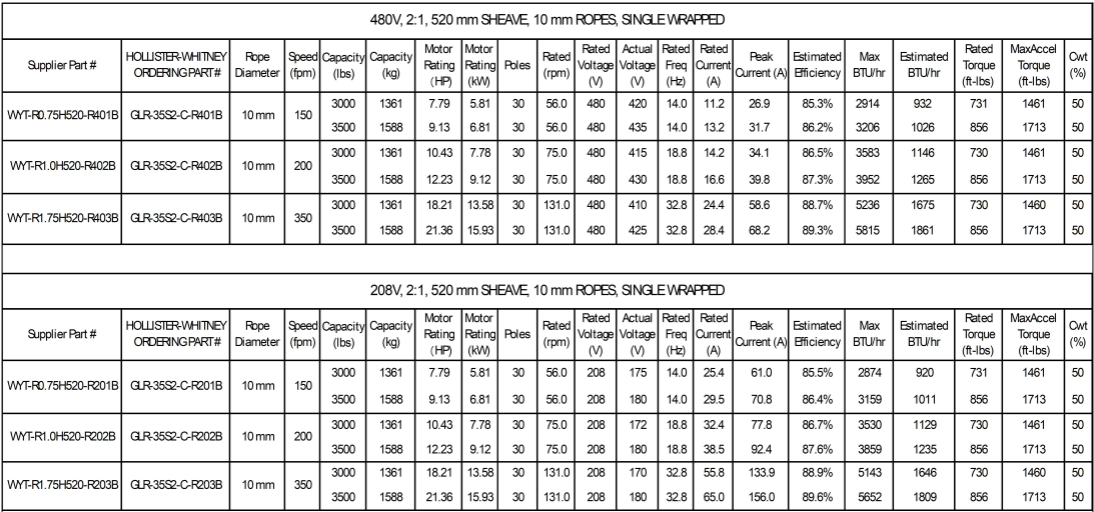

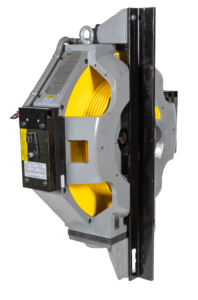

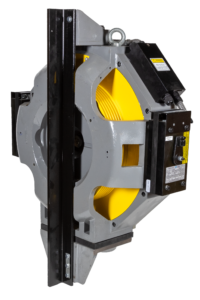

GLR-35S2
The GLR-35S2 is a direct mechanical replacement for the KONE MX14 & NMX14 rail mounted machines.
Specifications
• Speed: Up to 350 fpm
• Capacity: Up to 3,500 lbs.
• Roping: 2:1 Single Wrap Traction
• Rope Diameters: 8 mm and 10 mm
• Drive Sheave Diameters: 520 mm
• Line Voltage: 208/240 AC & 440/480 AC, 3 phase
• Machine Weight: 1,400 lbs.
• Encoder: Heidenhain 2048 Encoder (ECN 1313)
Pixel AC MRL
The Pixel AC MRL from Elevator Controls is a complete traction controller solution designed to fit in smaller MRL spaces. It features a unique, tall-and-slim form factor that’s ideally suited for your modernization project.
Standard Features
• Vibration-Isolated Design
• Low Machine and Brake Noise
• LANDA Absolute Position System with Encoded Stainless-Steel Tape
• C.E. Micro Comm Position Indicator (3-Wire) Interface
• Card Reader Interface
• Earthquake Interface Circuitry
• Emergency Generator Interface
• Enclosure NEMA 1 Standard
• Fan and Light Timer Interface
• Low-Voltage Fixture Interface Circuitry
• NEMA 1 Selector Enclosure
• ASME A17.1-2022/B44-22 Code Compliance
• CAN Roped Load Weighing Device & Interface Circuitry
• CAN Serial Communication: Cartop Box and Main COP Board
• Pre-wired Top of Car (TOC) Inspection Station
• Voice Annunciator Interface via C.E. Micro Comm
• CAN Serial Communication: Hall Call Node Board
• 10 CAN Serial Communication: Hall Lantern Node Board
• 1 CAN Serial Hall Call/Lantern STD Connection Cable Package (CAT-5 25 ft control to 1st node; and per landing: 14 ft Flr-Flr, and 5 ft + Splitter)
• 15 Month Standard Warranty
• Tech Support: No-Charge Technical Hotline
Optional Feature
• Battery-Powered Rescue Device and Camera
NEW! Vantage now offers RENEW™ MRL for existing KONE MX10, NMX11, MX14, NMX14 MRL applications. The RENEW™ MRL package utilizes a Hollister Whitney GLR pancake style machine with matched design criteria as well as an Elevator Controls Pixel non-regenerative controller. For more information or a quote, please submit requests to renewtraction@vantageelevation.com.
Contact renewtraction@vantageelevation.com or your local Vantage Region Representative for more information.
