RENEW™ HYDRO
Hydraulic elevator modernization made easy
The RENEW™ hydro modernization solution from Vantage delivers five key hydraulic products in one to reduce complexity and loss of valuable time with your elevator modernization projects. Each product is pre-engineered and configurable for optimum safety, reliability, ride quality and value. As always, every product in this solution is backed by unmatched product and customer support from a team of regional field engineers on standby 24/7. Pricing includes initial drop-shipping cost.
One Solution.
Five industry-leading, non-proprietary components.
The Vantage RENEW™ hydro modernization solution from Vantage consists of five industry-leading products:
1. Controller
2. Submersible Pump Unit
3. Door Equipment
4. Fixtures
5. Electrical Package
RENEW™ hydro is ideal for elevator modernization projects that meet these common specifications:
Operation: Simplex or duplex operation
Speed: 50 – 150 fpm
Capacity: 1,500 – 5,000 lbs.
Stops (Maximum): 5
Openings (Maximum): 10
Rise (Maximum): 60′
Loading: Class A (Passenger)
Pump unit type: Submersible
Electrical Supply: 208 – 575 VAC, 3 Phase, 60 Hz | 220 VAC, 1 Phase, 60 Hz
NEMA 1 machine room and hoistway condition
Dealing with an application outside these specifications? We have you covered. Just give us a call!
Benefits
Turnkey
Designated project manager to ensure your modernization is a success
Support
Run reports related to calls handled by the elevator group.
Training
Product training for your technicians
Savings
Labor savings for ordering and installation
Customization
All products are pre-engineered and configurable
Value
Increased safety, reliability, ride quality and value
Benefits
Turnkey
Designated project manager to ensure your modernization is a success
Support
Run reports related to calls handled by the elevator group.
Training
Product training for your technicians
Savings
Labor savings for ordering and installation
Customization
All products are pre-engineered and configurable
Value
Increased safety, reliability, ride quality and value

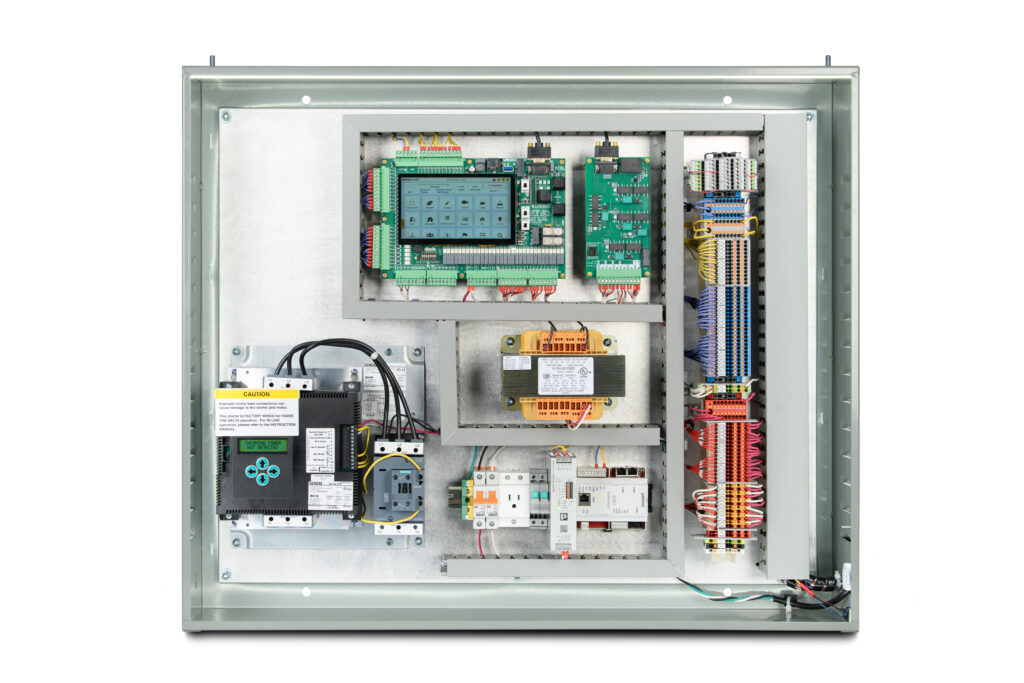

Controller
RENEW™ hydro offers our vertically-integrated GAL eHydro or Elevator Controls Pixel Hydro controller solutions
STANDARD FEATURES:
• Standard-solid-state starters
• 3 points of access, facilitating easy car diagnostics
and performance adjustments
• Intuitive, easy-to-learn full-color user interface
• Fully-integrated Absolute Positioning System
(APS), that provides exact car position at all times
• Serial Position Indicator Interface, COP, and Hall
Station
OPTIONAL FEATURES:
• Battery lowering
• Emergency power interface
• Door hold operation
• Attendant operation
• EMT operation
• Keyed floor lockout interface
• Card reader interface
• Hospital service
• Loadweigh interface
• Dual piston synchronization
• Governor interface (Roped)
PIXEL HYDRO
eHydro

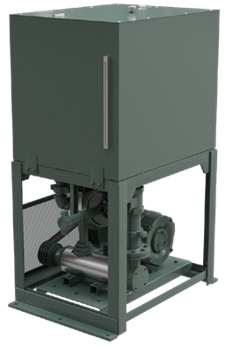

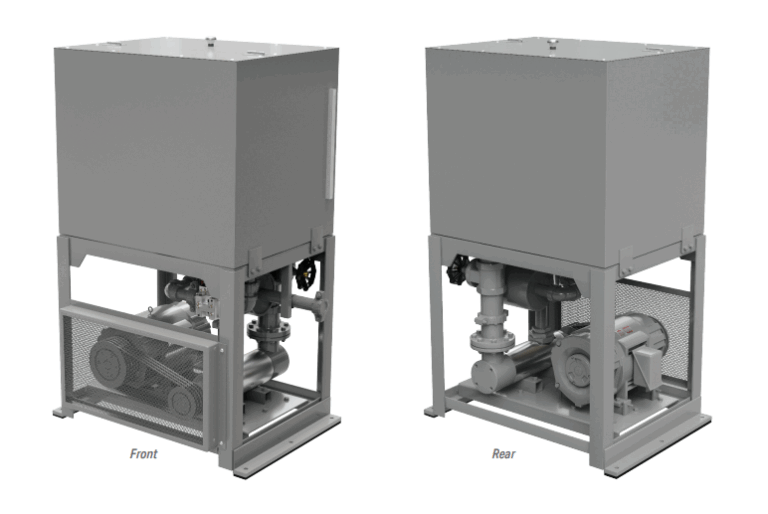

Submersible Pump Unit
RENEW™ hydro includes our Bore-Max submersible pump unit which is designed to withstand decades of trouble-free service.
STANDARD FEATURES:
• Maxton valves
• 10 – 50 HP
• Removable ventilated hinged / fixed lid allows ease of access, especially to the valve
• Isolated sub-frame allows easy of removal and replacement of components
• Pressure test gauge and shutoff valve
• Oil sight gauge
• Isolated structural channels promote free airflow, reducing the risk of untimely tank bottom rust
• BoreMax blowout proof chamber muffler
OPTIONAL FEATURES:
• Shutoff valve
• Isolation couplings
• Pipe rupture/overspeed valve
• 120 starts per hour motors
• Oil heater
• Oil cooler pre-plumbing (Cooler by others)
• Bladder suppressor – nitrogen charged
• Low oil switch
• Low pressure switch
• Hot oil switch
Door Equipment
GAL is the most trusted brand for non-proprietary door equipment with combinations to satisfy all applications. RENEW™ hydro offers you five convenient door bundle choices (three Harmonic and two Linear) for cabs up to 10’ and door heights up to 9’:
GAL-MOVFR II DOOR OPERATOR PACKAGE:
• Closed loop door operator, gate switch, arm(s), car door clutch and ScanGuard “Plug and Play” infrared door protection w/ integrated power supply
• Standard features include VVVF closed loop motor control, built-in diagnostics, up to 5 preset parameters, CAN communication connection
• NEMA 1 enclosure and a heavy duty 1/2 HP 220-230 VAC motor
GAL-MOVFR II DOOR OPERATOR AND CAR DOOR EQUIPMENT PACKAGE:
• Door operator package (listed above) + car door tracks, hangers, rollers, wiper kits and headers
GAL-MOVFR II CAR AND HATCH DOOR EQUIPMENT PACKAGE:
• Door operator package (listed above) + car door equipment package (listed above) + hatch door hangers, rollers, top safety retainer, tracks, spring door closers, interlocks, keepers, roller releases, pick up rollers, linkage and hardware
GAL MOVFE-HL CAR
DOOR PACKAGE:
• Dual closed loop linear door operator, car door track, hangers, header, gate switch, car door hangers, rollers, wiper kits, car door clutch, and ScanGuard “Plug and Play” infrared door protection w/integrated power supply
GAL MOVFE-HL CAR AND HATCH DOOR EQUIPMENT PACKAGE:
• Operator / car door package (listed above) + hatch door hangers, rollers, top safety retainer, tracks, spring door closers, interlocks, keepers, roller releases, pick up rollers, linkage and hardware
OPTIONAL DOOR EQUIPMENT
• Formula systems (FCU 47) 2D substitution
• Tri-tronics leading edge 2D substitution
• Formula vision 3-3D substition
• Reel door closers
• Door unlocking key
• Handheld parameter tool
Fixtures
RENEW™ hydro includes Vantage Fixtures Designed & Made by MAD, offered in four common finish types including Stainless Steel # 4, Stainless Steel # 8, Muntz # 4 and Muntz # 8
STANDARD CAR OPERATING FEATURES:
• 7.0” LCD position and direction indicator
• Durable, visually aesthetic buttons and switches
• Choice of button type
• Choice of illumination
• Applied, mini-swing and full swing
• Emergency light
• Rath emergency phone
• Service cabinet
• Local fire code compliance
• Jurisdiction specific engraving
• Auxiliary COP
OPTIONAL CAR OPERATING PANEL FEATURES:
• Certificate frame
• Attendant operation
• Door hold button
• EMT operation
• Card reader provisions
• Keyed floor lockouts
• Hospital service (code blue)
• Voice annunciation
• Cab lighting dimmer
• Reset switch
• “Pull to stop” emergency stop button
• Phone jack
• Engraved no smoking symbol
• Mosaicone cloud based two way audio | video | messaging | monitoring
• Spare key switches
STANDARD HALL STATION FEATURES:
• Flush mount w/box
• Jurisdiction specific engraving
• Local fire code compliance
OPTIONAL HALL STATION FEATURES:
• Surface mounting
• 2.8” LCD position indicator
• Car-to-lobby operation
• Hospital service (code blue)
• EMT operation
• Keyed floor lockouts
• Emergency power
CHOICE OF BUTTON OPTIONS
• Whether you are looking for basic, vandal resistant, California compliant or a premium look, we have a high-quality button selection for you!
Signal Fixtures
HALL FIXTURES
• Hall lanterns – Standard or vandal resistant flush or surface mounting
• Hall position indicators – 4.3” Flush of surface
• Combination hall lantern / 4.3” LCD position indicators
• Standard or vandal resistant
• Flush or surface mounted
Electrical Package
We recognize the challenges related to deciding on the necessary electrical materials required for a hydraulic modernization. RENEW™ hydro offers two options depending on your preference and era of installation, letting you choose between our Basic or Full selections which are adjoining/adjacent at lowest landing or remote control locations up to 150 wire feet. Intermediate electrical materials between the hoistway and machineroom for full remote electrical bundles to be provided “by others” to meet unique job specific requirements.
BASIC
A great match if wireways and raceways will be retained or provided by others. A basic electrical package includes:

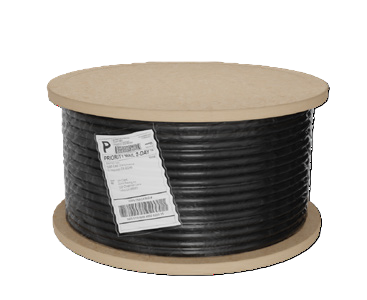

• Traveling cable
• Kellem grips
• Multi-cable hoistway wire
• Fire rated door lock wire
FULL
A full RENEW™ hydro electrical package is offered for customers bound by code or have a preference to replace existing wireway and raceways. Delivering the convenience of receiving the majority of the associated replacement electrical materials needed.
