TVC Products
Our new indicators are available in 5″ or 7″ IPS TFT screens with wide viewing area with touch option for in-car versions.
Simple programming via the Ethos MMI make changes so quick and easy. There is no encoder required, CAN connection is via the Ethos MMI and has built in speech and gong.
Handwind
03 Display
Unit
The HW03 Handwind unit is a low-cost, high-performance digital handwinding position display for use with the Ethos controller for displaying lift floor level for handwinding purposes.

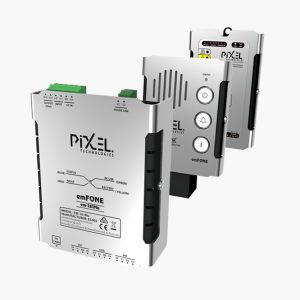

EM-181 emFONE Autodialler
Our EM-181 emFONE lift Autodialler. Compact in size, high on quality and low in price.
With connection to up to 8 stations, the EM-181 system allows both emergency and internal communications throughout the lift shaft.
Sensor Monitoring Device VC-SM
The VC-SM is our latest sensor monitoring device, designed to provide reliable lift monitoring for any third-party controller.
Engineered with scalability in mind, the VC-SM can be configured to deliver anything from essential monitoring functions to comprehensive, real-time lift performance analysis.

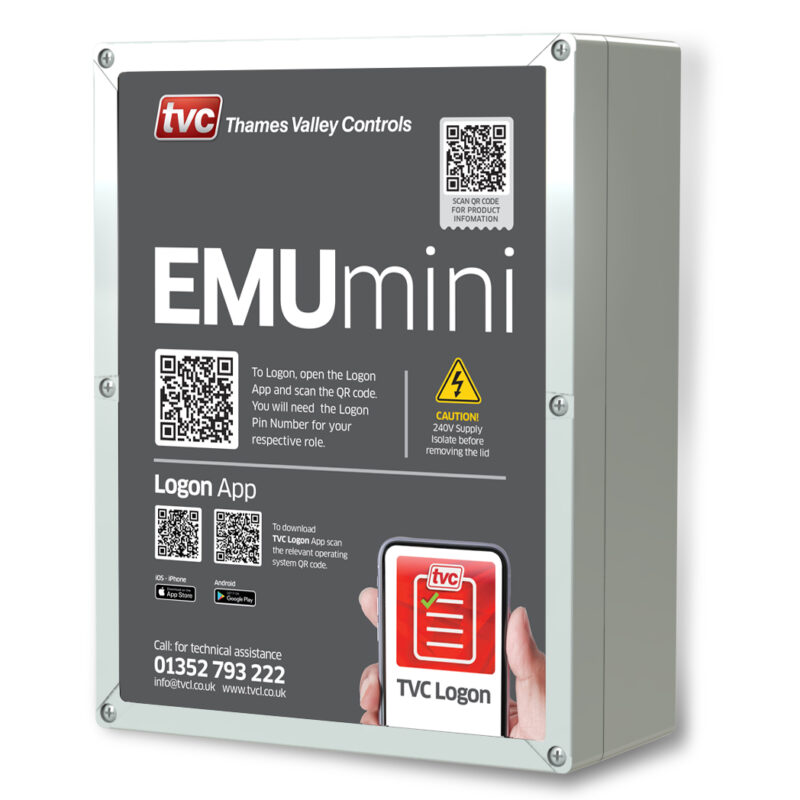

Mini
Monitoring
Unit
Our Mini allows you to monitor various assets such as lifts, escalators, automated gates, this device can monitor anything that has on/off capabilities.
Event status and data is sent to our cloud based platform, custom rules can be setup to generate the required event.
Ethos IOT
Now with IoT connectivity, the best-in-class Ethos lift controller is ready to integrate with Smart buildings.
With the release of Gateway, TVC brings to market the technology breakthrough of Ethos IoT to deliver unequalled monitoring performance and lift control.
Touchscreen Pedestal
Our pedestal mounted touchscreen is selected in applications where a central or floor-fixed Touchscreen is desired. The pedestal can be supplied in stainless steel or coloured matched to the building design.
The pedestal not only looks great it offers the users simple intuitive screen instructions requiring minimum training.
Touchscreen Tablet
Our premium Tablet option offers a 10” capacitive touchscreen encased in a machined-from-solid aluminum chassis. The edge-less glass screen and sleek, slim-line contemporary design offers a high-gloss, high-class option for discerning clients. Available in a range of colors.
The tablet touchscreen not only looks great it offers the users simple intuitive screen instructions requiring minimum training.
Wall Mounted Touchscreens
We offer a range of flush, surface and angled units manufactured in stainless steel or finished in colours to complement the style of the building.
Our touchscreen range offers the users simple intuitive screen instructions and requires minimum training. They have been designed with the customer in mind who can easily change the colours of background to suit your own branding or building requirements and are all available with swipe card interface.
Keypads
When robust, tactile operation compliant with EN81:70 is the priority; our Keypads offer a functional but attractive low-cost solution. Manufactured in stainless steel to the same demanding specification as cash-points, these resilient units provide destination call entry with 4.3” LCD screen and audio feedback.
Our keypad range offers the users simple intuitive screen instructions and requires minimum training. They have been designed with the customer in mind who can easily change the colors of background to suit your own branding or building requirements and are all available in different mounting options and with swipe card interface.
Landing
Destination
Display
Some installations benefit from having a landing destination display to confirm the floor levels being serviced by that lift thus providing additional information and peace-of-mind for the lift passenger.
In-Car Information Display
The In-Car Information Display for Ethos Navigator Destination Control with 12” and 7” TFT screen options, the car operating panel displays the registered stops for destination and the car position. Audible output provided verbal car and destination confirmation for visually impaired passengers. The display doubles as a touchscreen to allow special feature operations such as car preference and car call entry.
Cube Lift ID
The Cube ID provides clear identification of the lift from all angles and from wherever you are standing in the lift lobby it is easy to see. The design of the Cube is also quite unique and it is available in either an illuminated or non illuminated format. The Cube is available in black glass with white legend as a standard but other colors are available on request.

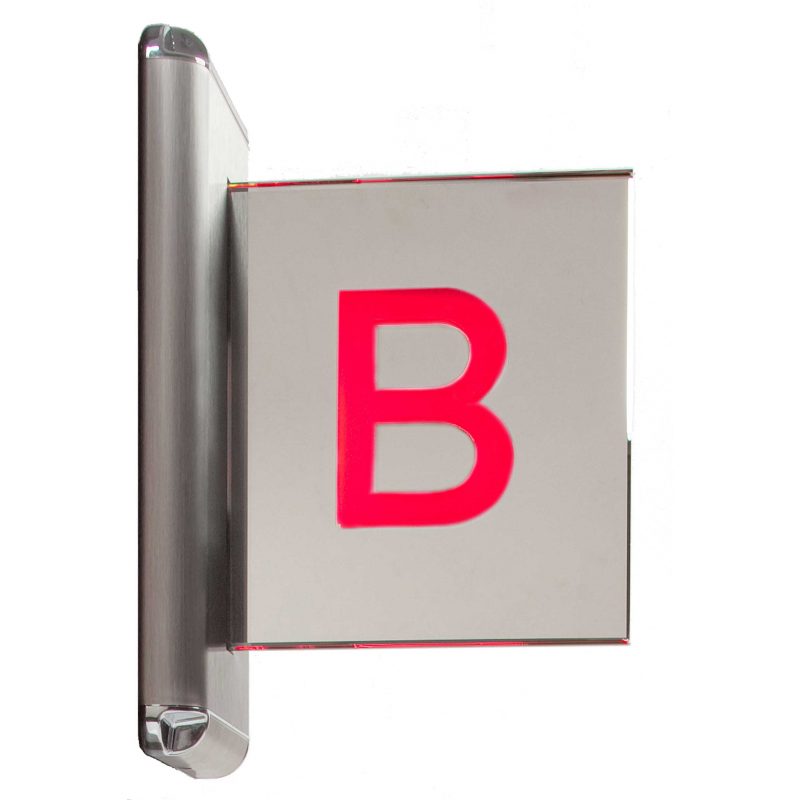

Mirror Blade Lift ID
The new Mirror Blade Identifier again clearly identifies the lift that a user has been assigned to. The ID has a very smart appearance of clear glass and is highly visible in a lift lobby. Illumination options depend on how the system is operated but the Blade can illuminate permanently or on arrival. It can also link to a gong/speaker.

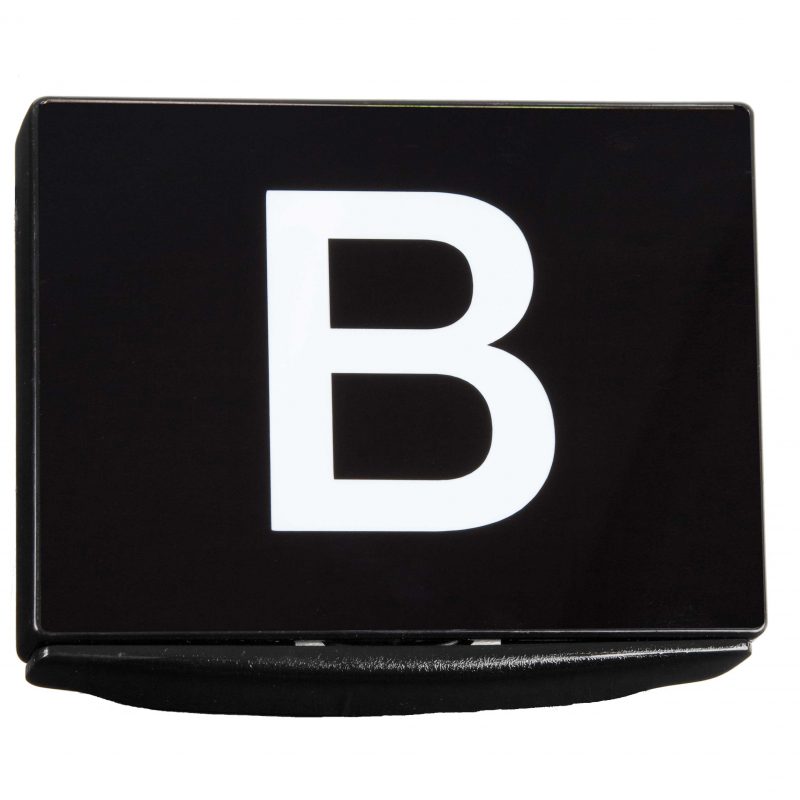

UniBlade
Flush Lift ID
The UniBlade Flush ID Indicator provides a contemporary design for car identification, ideally suited to prestigious office and apartment buildings. The protruding UniBlade Flush ID provides a highly visible illuminated legend to show the lift car identification, it is an ideal product for destination control lift systems.

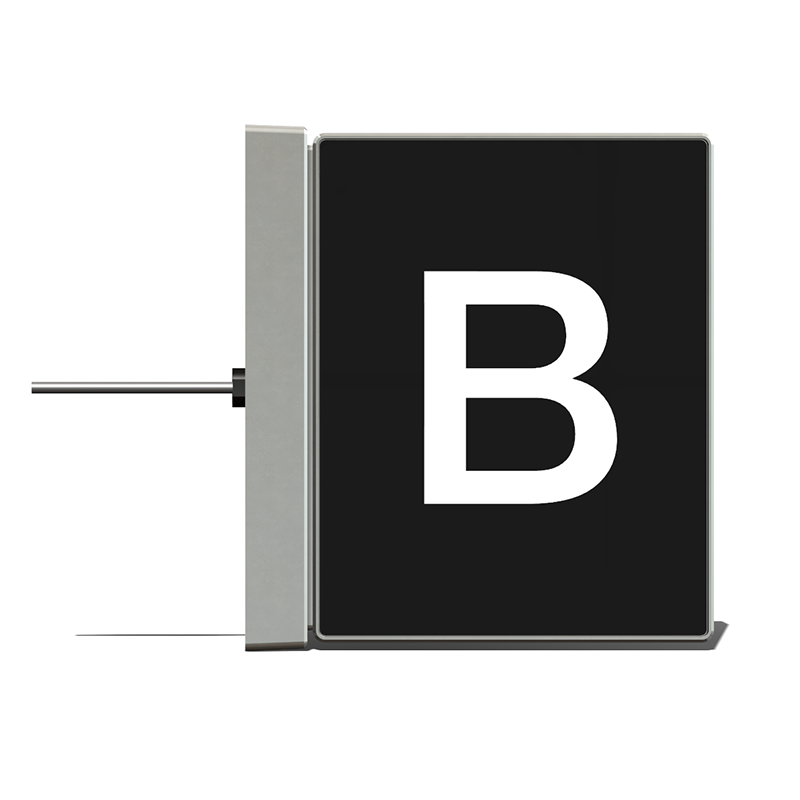

UniBlade Lift ID
The UniBlade ID Indicator provides a contemporary design for car identification, ideally suited to prestigious office and apartment buildings. The protruding UniBlade ID provides a highly visible illuminated legend to show the lift car identification, it is an ideal product for destination control lift systems. The design is clean and modern, with a range of colour options for the body such as natural, black and white. The side panels of the UniBlade ID are available in black or white, with a range of illumination options.
Standard Lift
Control
Panel
TVC can offer a range of lift control panels within less than 2 weeks where urgent replacements are required. The standard lift control panel is offered in geared, gearless and MRL options.
Ethos IOT
Now with IoT connectivity, the best-in-class Ethos lift controller is ready to integrate with Smart buildings.
With the release of Gateway, TVC brings to market the technology breakthrough of Ethos IoT to deliver unequalled monitoring performance and lift control.
Ethos Two
Ethos TWO lift control panel has been designed to put a smile on your face with it’s powerful lift control technology at your fingertips. The large full-colour touch-screen provides simple intuitive diagnostics, commissioning and configuration to make control quicker and easier.
Ethos Two MRL
With all the features of our Ethos Two, we have an MRL to suit your application. In the case of MRLs, the physical constraints of the building and available room to locate the controller are key considerations when selecting the right MRL for the job.

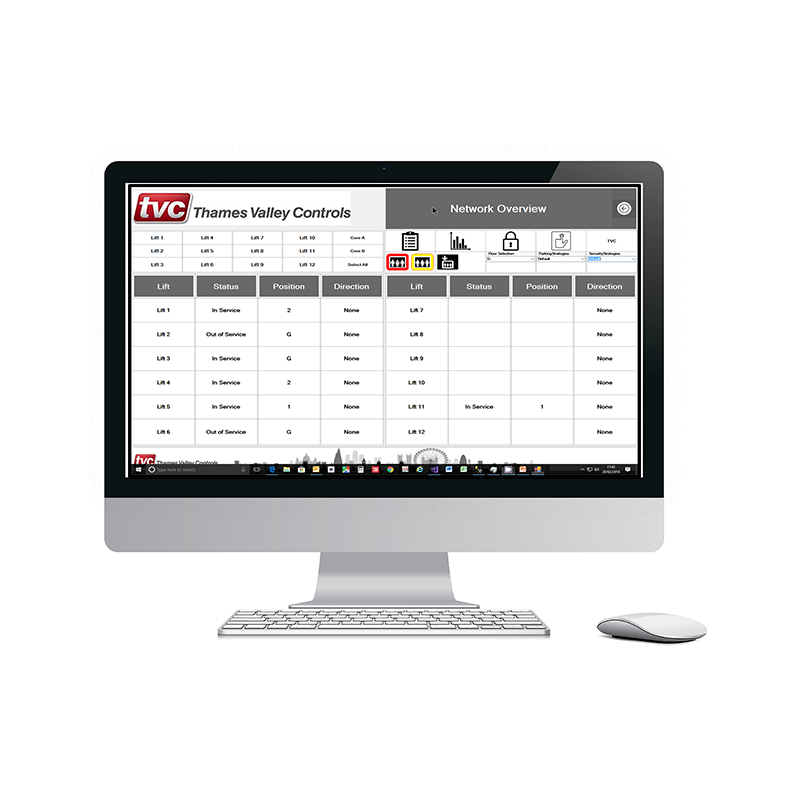

E-Director
E-Director offers a visual view of our Ethos control systems, from simplex to full group and is popular with building managers, lift consultants and lift engineer.

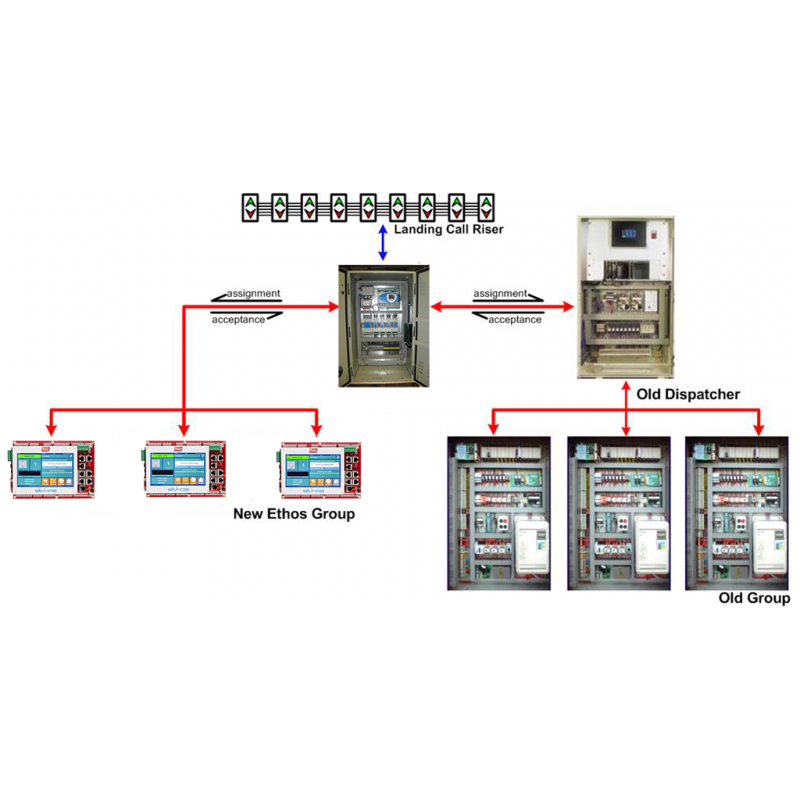

Ethos Call Assignment System
TVC has developed the ECAS to enable an Ethos overlay to be applied to virtually any lift control system; relay or microprocessor. ECAS provides optimum service without the call-chase-then-cancel often experienced with conventional Cross Call Cancellation systems.

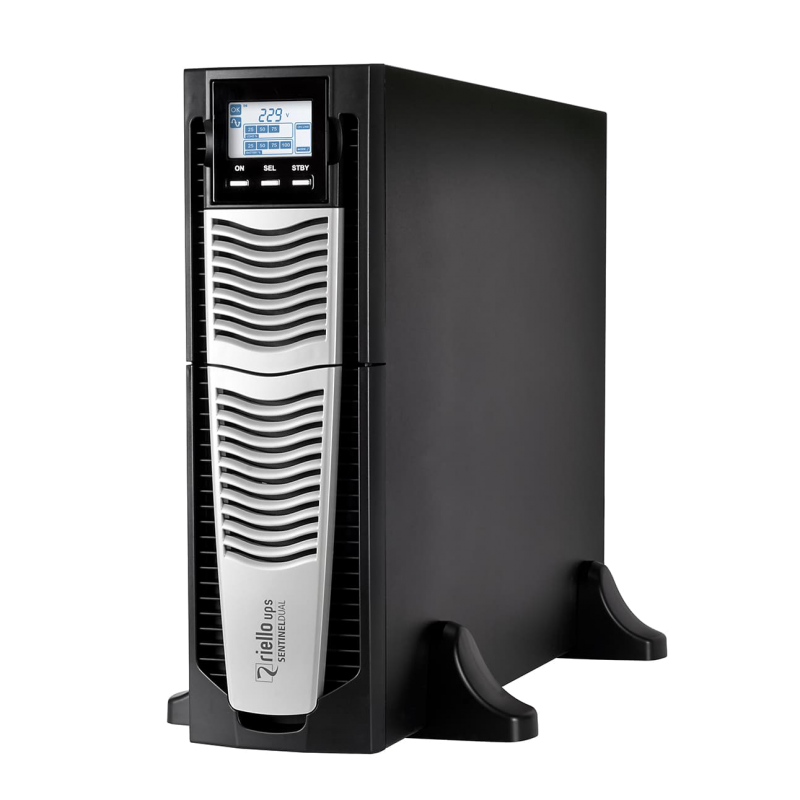

Automatic
Rescue
Device (ARD)
TVC offer an Automatic Rescue Device (ARD) solution for all applications.
From simple hydraulics to high-rise traction lifts; TVC will engineer a solution to suit your requirements.

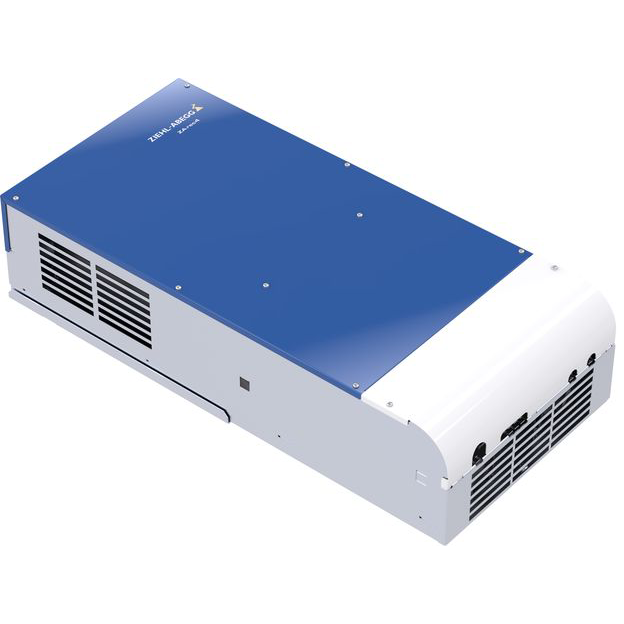

Regenerative Drive
TVC has selected the ZArec power feedback unit to meet the demands for energy efficiency and sustainability of lift systems. The generated energy is stored and fed back into the supply network.

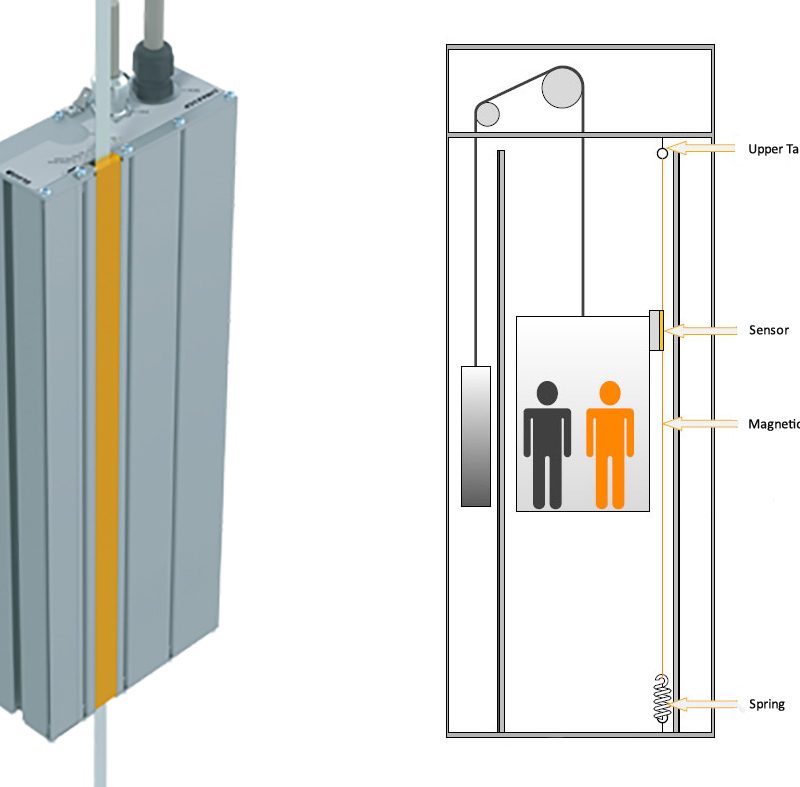

Limax Shaft Encoder
The integration with the Ethos through the serial CAN-bus and pre-wired looms makes the installation fast and easy.
To satisfy functional safety requirements, the LIMAX3CP absolute car position measurement sensors have full redundancy and thus can be used for safety relevant applications up to SIL3.

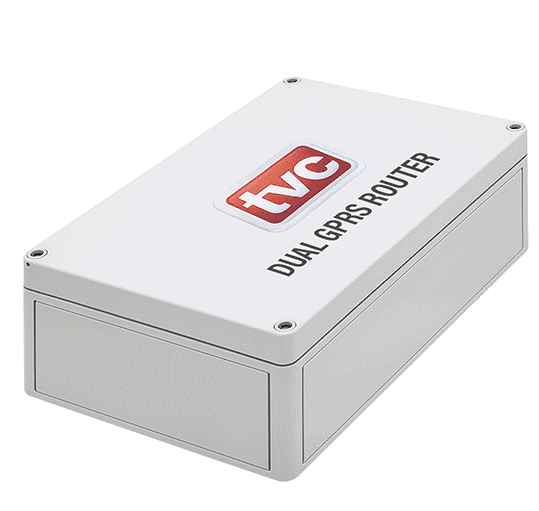

Autodialler
and Data
Dual Router
Key Features
- Speech and data communication through a single hub
- Fully engineered, compact and boxed solution ready to connect
- Integrated mains power supply with battery-back up as standard
- Preconfigured ports and settings for a plug-&-play solution
- Fully managed SIM from TVC
- Remote high gain aerial for flexible placement and reliable signal
- Suitable for multiple connections to devices including emFONE lift autodiallers, EMU Monitoring, CCTV and Mercury information display screens
- Compatible with EN81-28 2018
Options
- Secondary, back-up SIM
- Wi-Fi module for remote wireless and IoT connectivity
- Supply only or TVC supply and fit
Evacutation Control System
Our latest addition to our em-181 emFONE product is our NEW Evacuation Control System. Complying with European safety regulations EN81-72 and BS 9999:2008 for lift control in the event of a fire.
The system allows fire personnel or building managers to communicate with building users who are trapped on their floor level. The building user simply presses the control button on the
intercom unit which then connects to the EVAC Control Station.
The main EVAC Control Station is normally located on at the main entrance floor has special controls that allow the user to see the floors where building users are trapped.

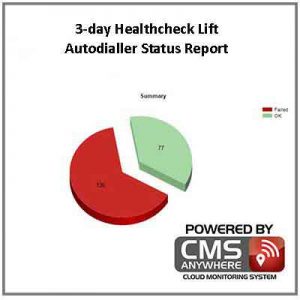

3-day Healthcheck EN81-28
Our 3-day healthcheck software which complies with EN81-28 provides a clever cloud- based solution that can automatically monitor our range of emFONE autodiallers

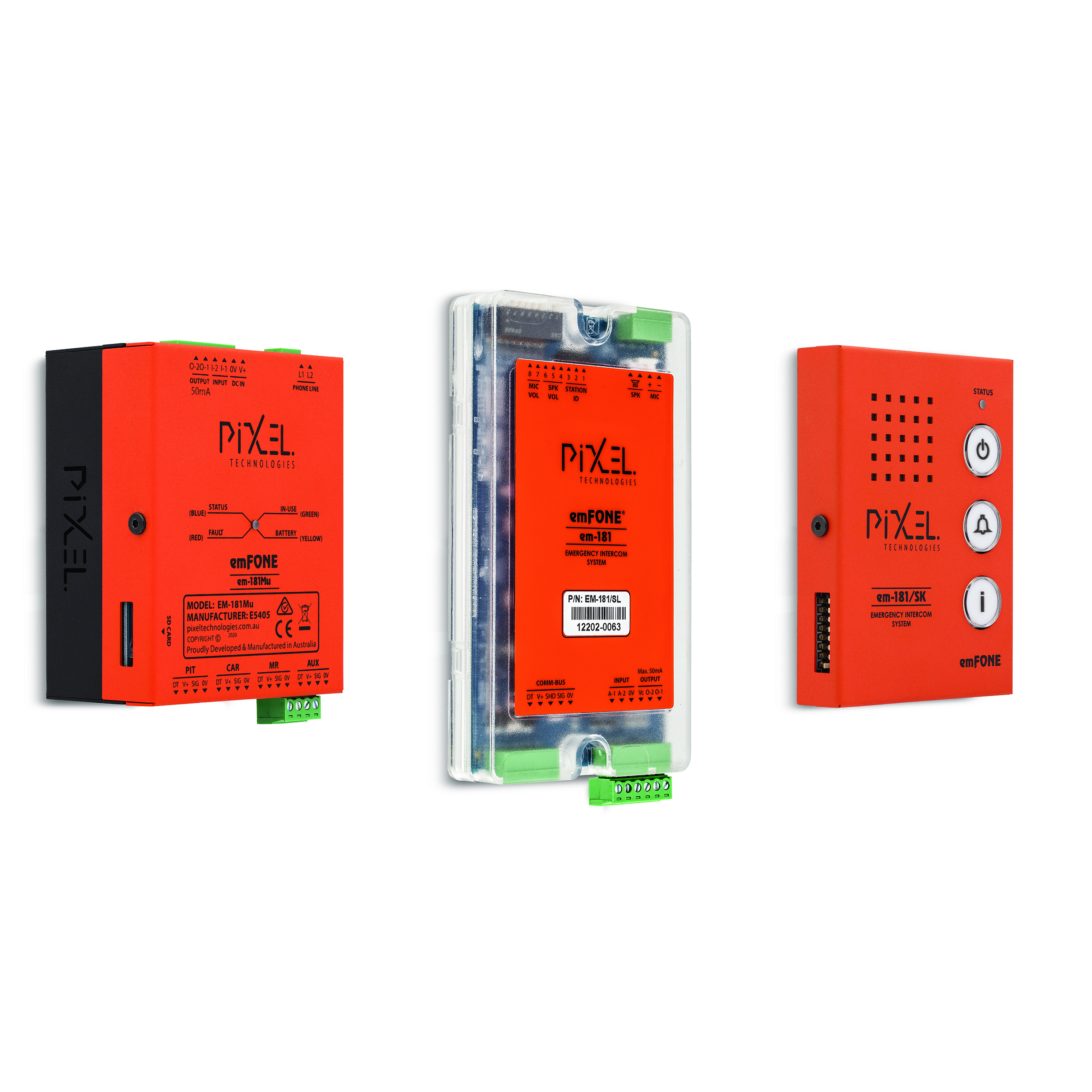

EM-181 emFONE Autodialler
Our EM-181 emFONE lift autodialler. Compact in size, high on quality and low in price.
With connection to up to 8 stations, the EM-181 system allows both emergency and internal communications throughout the lift shaft.

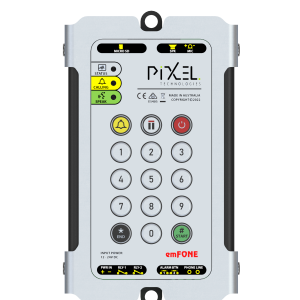

emFONE – EM1
The EM-1 emFONE lift autodialler has been designed to meet the requirements of the lift retrofit markets.
With its low price, easy installation and next day delivery*, it provides the lift industry with a cost effective solution. Providing peace of mind knowing that EM-1 is part of the well established emFONE family of products.

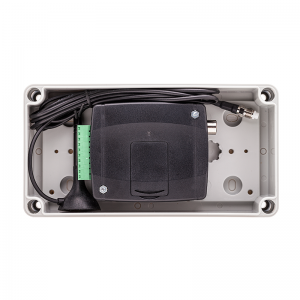

GSM Backup Device
Our GSM Backup device offers an automatic switch over facility from telephone line to GSM in the event of a telephone failure and has an internal battery backup system.
In the event of a telephone line failure this device will automatically switch over to GSM mode ensuring that your lift autodialler is working all the time for the rescue of trapped passengers.

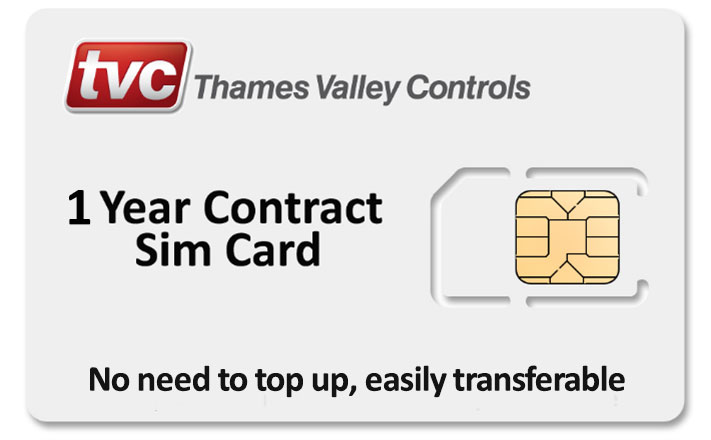

SIM Card Contract
Our SIM’s contracts are available as 1, 2 or 3 year contracts and are automatically renewed offering peace of mind and no need to top up. All our SIM card contracts are transferable if required.

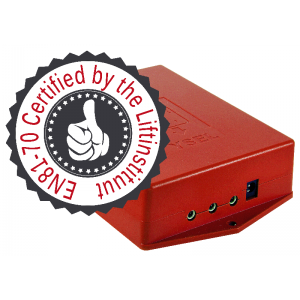

YSEL Loop Induction
The loop induction system for lifts has been specifically designed to help hearing aid users pick up the sounds within the lift car. The system works with any manufacture of voice announcement lift products.

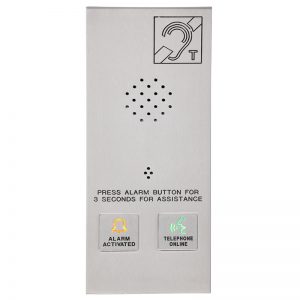

emFONE Faceplate
Our faceplates offer a solution where lift autodiallers are being installed for retrofit projects. The faceplates can be supplied with or without pictograms and without loop induction engraving.
Fireman’s Intercom Unit
The Fireman’s Intercom Unit provides direct voice communication to the lift car or motor room should the fire control be activated It allows the personnel using the emFONE firefighting intercom to speak directly to a trapped passenger or personnel in the lift motor room in the event of a passenger trapping or firefighting situation.

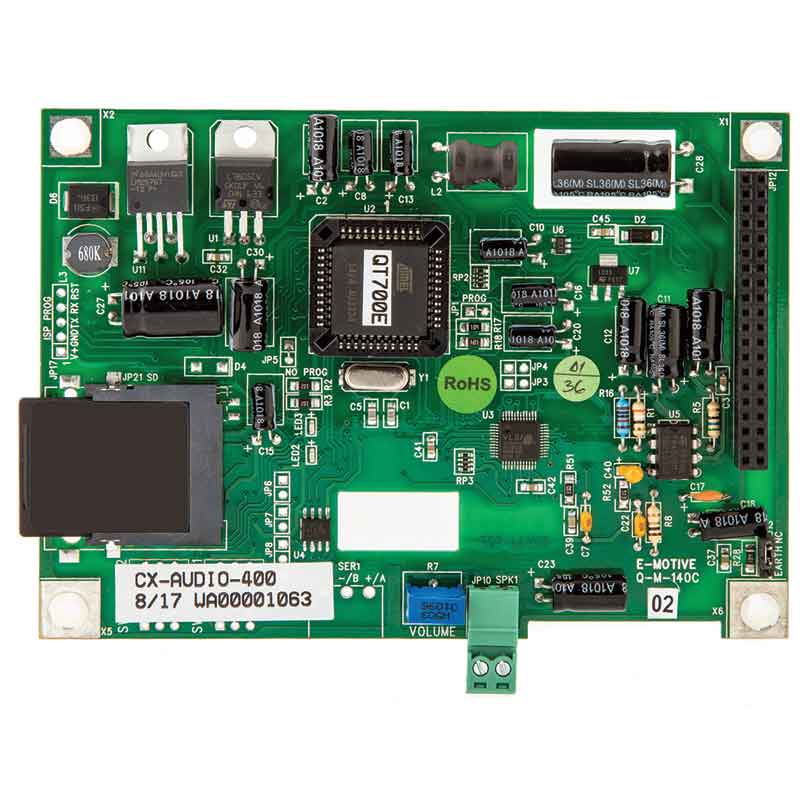

CX - Speech MP3
The CX-Speech MP3 is an enhanced version of the CX-Speech and has been specifically designed to plug into the Dewhurst CX-Basic Serial Encoder Board. Through dedicated inputs on the encoder it provides facilities for floor identification, door opening, door closing, direction of travel as well as warning and information announcements.
CX-Basic Encoder Board
The Serial Encoder Card CX-Basic is designed to be used in conjunction with serial controlled display units. The encoder has serial communication ports, SER1, SER2 and USB port and is installed in the lift machine room, next to the lift controller. It accepts signals like floor position code, directional arrows as well as lift status signals like MAINTENANCE, OVERLOAD, OUT OF ORDER etc. through 24 optoisolated inputs. The signals are then transmitted through SER1, which is a 4-wire serial communication link, to all the display units connected to it.

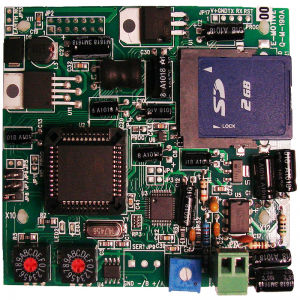

SM018 Speech Synthesiser Board
The new SM018 MP3 enhanced speech module has been specifically designed to plug into the Dewhurst CH024 & Ch034 Serial Encoder Board. Through dedicated inputs on the encoder it provides facilities for floor identification, door opening, door closing, direction of travel as well as warning and information announcements.
