Overhead Gearless Machines

Overhead Gearless Machines 1:1


1:1 Single Wrap Traction
40% CWT Applications
Machine	Speed	Max. Capacity	Machine Weight
GL101	150 fpm	1000 lbs.	2000 lbs
GL130A	<700 fpm	2500 lbs.	3900 lbs.
	<1000 fpm	2500 lbs.
GL131	<200 fpm	1500 lbs.	2300 lbs.
	<700 fpm	1000 lbs.
GL171	<700 fpm	2000 lbs.	2400 lbs.
GL185	<500 fpm	3000 lbs.	4300 lbs.
	800-1000 fpm	2500 lbs.
GL260	<1000 fpm	4000 lbs.	4800 lbs.


1:1 Single Wrap Traction
50% CWT Applications
Machine	Speed	Max. Capacity	Machine Weight
GL101	<700 fpm	1500 lbs.	2000 lbs
GL130A	<700 fpm	3000 lbs.	3900 lbs.
	800-1000 fpm	2500 lbs.
GL131	<200 fpm	2000 lbs.	2300 lbs.
	<700 fpm	1500 lbs.
GL171	<700 fpm	2500 lbs.	2400 lbs.
GL171x	<350 fpm	3500 lbs.	2560 lbs.
	400 fpm	2500 lbs.
GL260	<1000 fpm	4500 lbs.	4800 lbs.

Overhead Gearless Machines 2:1


2:1 Single Wrap Traction
40% CWT Applications
Machine	Speed	Max. Capacity	Machine Weight
GL101	<350 fpm	2500 lbs.	2000 lbs.
	<500 fpm	1500 lbs.
GL130A	<350 fpm	5000 lbs.	3900 lbs.
	400 fpm	4500 lbs.
	450 fpm	4000 lbs.
	500 fpm	3500 lbs.
GL131	<350 fpm	3000 lbs.	2300 lbs.
	<800 fpm	2500 lbs.
GL171	<400 fpm	4000 lbs.	2400 lbs.
	450-800 fpm	3000 lbs.
GL185	<350 fpm	6000 lbs.	4300 lbs.
	400 fpm	5000 lbs.
	450 fpm	4500 lbs.
	500 fpm	4000 lbs.
GL260	<500 fpm	8000 lbs.	4800 lbs.


2:1 Single Wrap Traction
45% CWT Applications
Machine	Speed	Max. Capacity	Machine Weight
GL101	<350 fpm	2500 lbs.	2000 lbs.
	<500 fpm	2000 lbs.
GL130A	<400 fpm	5000 lbs.	3900 lbs.
	450-500 fpm	4000 lbs.
GL131	<350 fpm	3500 lbs.	2300 lbs.
	400-800 fpm	2500lbs.
GL171	<400 fpm	4000 lbs.	2400 lbs.
	450-800 fpm	3000 lbs.
GL185	<500 fpm	6000 lbs.	4300 lbs.
GL260	<500 fpm	8000 lbs.	4800 lbs.


2:1 Single Wrap Traction
50% CWT Applications
Machine	Speed	Max. Capacity	Machine Weight
GL101	<350 fpm	3000 lbs.	2000 lbs.
	<500 fpm	2000 lbs.
GL130A	<400 fpm	5000 lbs.	3900 lbs.
	450-500 fpm	4500 lbs.
GL131	<350 fpm	4000 lbs.	2300 lbs.
	400-800 fpm	3000lbs.
GL171	<400 fpm	4500 lbs.	2400 lbs.
	450-800 fpm	3500 lbs.
GL185	<500 fpm	6000 lbs.	4300 lbs.
GL260	<450 fpm	9000 lbs.	4800 lbs.
	<500 fpm	8000 lbs.

Double Wrap Traction (DWT) Gearless Machines

The GLV-40D1 and GLV-40D2 machines are compact efficient and versatile. With speeds available up to 800FPM, these machines can be installed in both new construction and modernization projects.

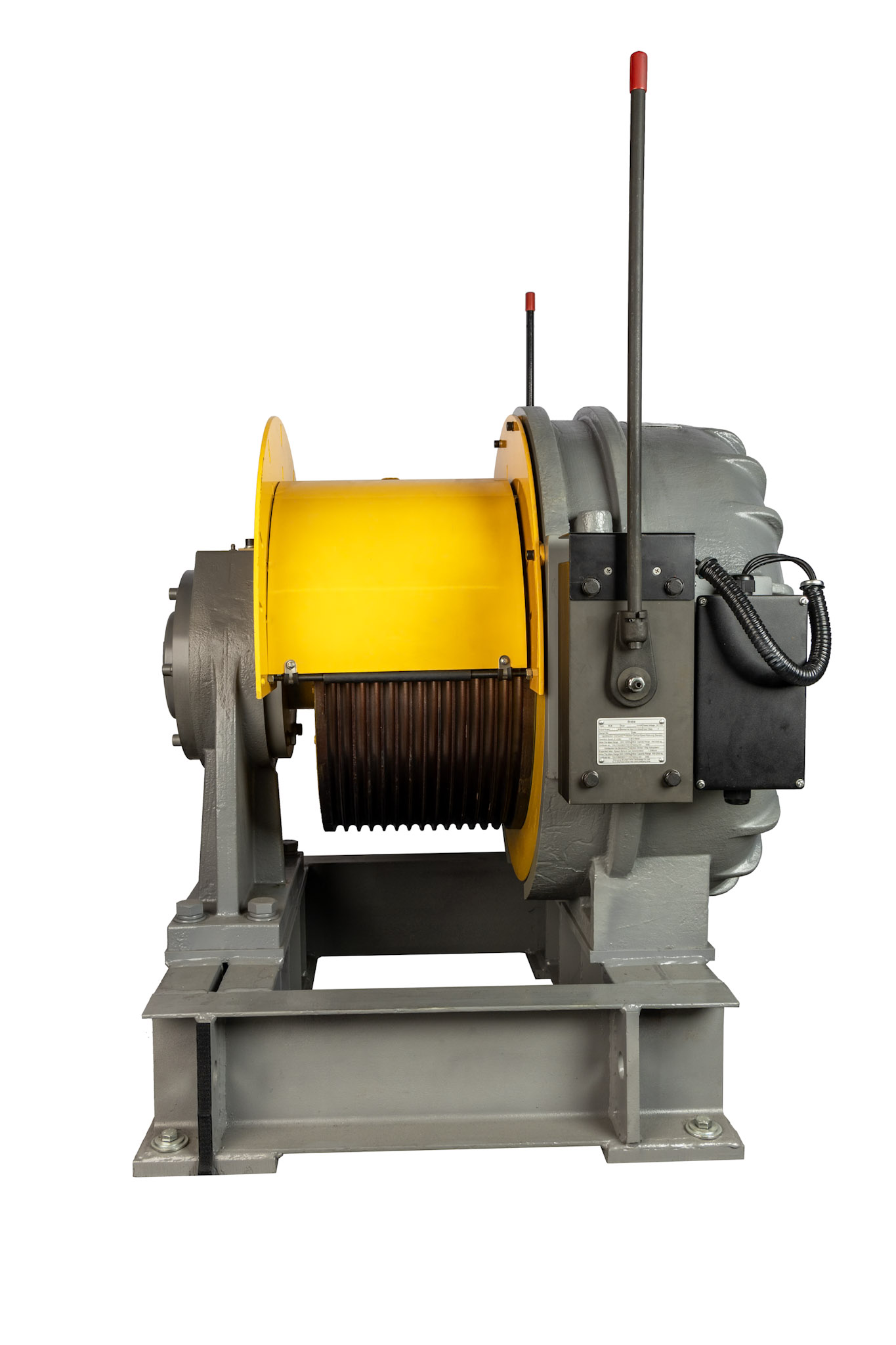

GLV-40D1

Benefits:

Consume up to 40% Less Power than Traditional Asynchronous Motors
Low Audible Noise – Best in Class Performance
Compact Design Inclusive of Outboard Bearing Post
Armless Block Type Brakes – Quiet | Fewer Moving Parts
High-Grade Rare Earth Magnets – Highly Efficient, High Torque
Smooth Stepless Motor Control
Low Force Required for Manual Brake Release


1:1 Double Wrap Traction
50% CWT Applications
Machine	Speed	Max. Capacity	Machine Weight
GLV-40D1	1000 fpm	4000 lbs	5300 lbs.

GLV-40D2

Benefits:

Compact Design Inclusive of Outboard Bearing Post
Armless Block Brakes – Quiet | Fewer Moving Parts
High-Grade Rare Earth Magnets – High Torque, Low Temperature
Lower Power Consumption
Low Audible Noise
Smooth Stepless Motor Control
Low Force Required for Manual Brake Release


2:1 Double Wrap Traction
50% CWT Applications
Machine	Speed	Max. Capacity	Machine Weight
GLV-40D2	800 fpm	4000 lbs	3190 lbs.
