Technology Redefined
Simplicity at its Core
Vantage is pleased to introduce the next chapter in control technology – Nexus™. The Nexus™ control systems offer unparalleled install ability and adjustments. Designed and built based on the voice of Vantage’s broad customer base, Nexus™ incorporates the features that elevator contractors find most valuable and reduces costs. The Nexus™ technology platform is combined with our new Self-Service Portal making end-to-end estimating, pricing and ordering streamlined and simplified.
Visit our Customer Portal to estimate and order your Nexus™ Controller now!
Traction Controller
Hydraulic Controller
Traction Controller

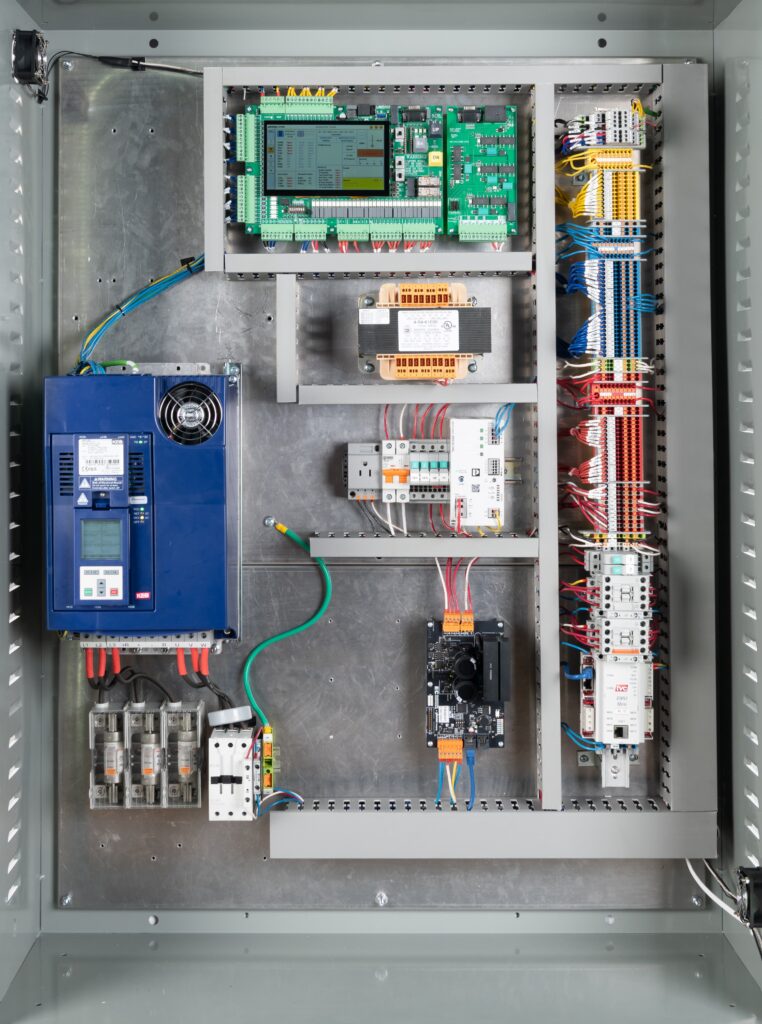

Nexus™ Traction Controller
BENEFITS:
- Faster installation: reduced number of field wires allows for faster installation and less errors
- Configurability: controller is fully configurable to allow for field modifications without software changes
- Troubleshooting: 7” touch screen provides clear presentation of information to allow the user to quickly troubleshoot and restore service
- Safety: Independent Safety Monitoring Circuits for EPDs
- Remote Monitoring: Remote monitoring ready with Vantage Connect
TECHNICAL SPECIFICATIONS:
- Application: Traction VVVF
- Max Landings: 20
- Opening Type: Front and Rear
- Max Openings: 40
- Max Speed: 50-500fpm
- Operation: Simplex or Group (up to 4 cars)
- Universal IO: Field configurable
- Motor Control (VVVF): KEB F5/F6
- Serial Communications: Y
- Integrated Cartop Box: Y
- Elevator Code: All
- Fire Service: All
Hydraulic Controller

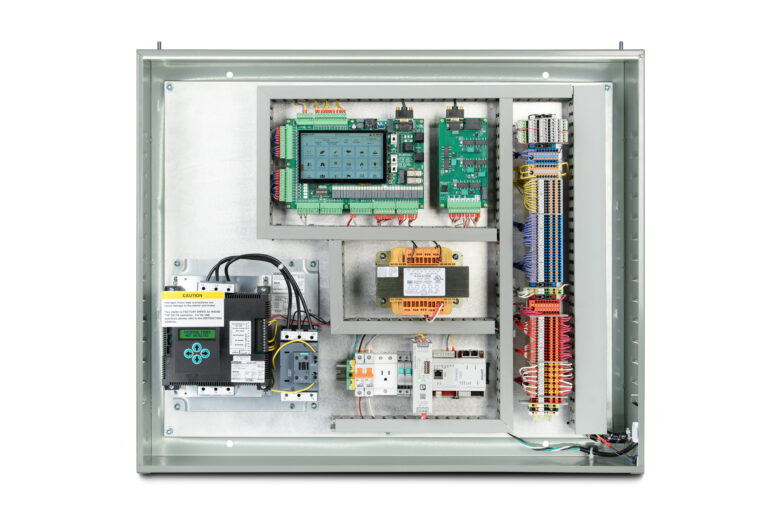

Nexus™ Hydraulic Controller
BENEFITS:
- Faster installation: reduced number of field wires allows for faster installation and less errors
- Configurability: controller is fully configurable to allow for field modifications without software changes
- Troubleshooting: 7” touch screen provides clear presentation of information to allow the user to quickly troubleshoot and restore service
- Safety: Independent Safety Monitoring Circuits for EPDs
- Remote Monitoring: Remote monitoring ready with Vantage Connect
TECHNICAL SPECIFICATIONS:
- Speed: <200 fpm
- Groups: Up to Four (4) Car Groups
- Landings: Eight (8)
- Openings: Sixteen (16) Openings – Front & Rear
- Dimensions: 30”H x 36” W x 8” D
TOUCHSCREEN UI:
- Easy to navigate menu structure makes finding what you need quick and easy
- Touchscreen available at three locations 1) Controller 2) Car Top and 3) Car Operating panel
- Integrated fly out menus and status Icons are shown on every menu page
- No Hidden Parameters
- Functional Descriptions for each controller option
- Parameter Ranges
- Dynamic Interface converts all units for you
NEXUS™ WHITEPAPER:
Seven Key Considerations for Choosing the Right Hydraulic Control System
- Installation
- Configurability
- Troubleshooting
- Safety
- Remote Monitoring
- Technical Support
- Total Cost of Ownership
