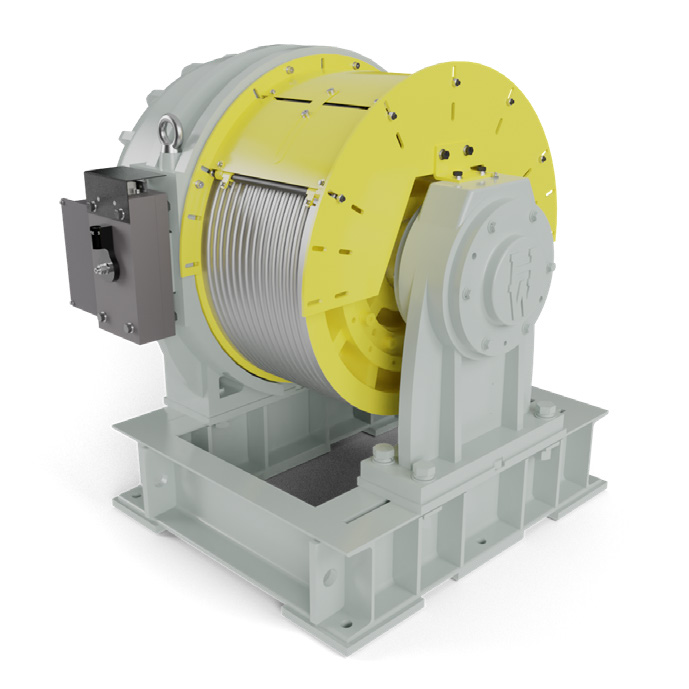

Double Wrap Traction (DWT) Gearless Machines

The GLV-40D1 and GLV-40D2 machines are compact efficient and versatile. With speeds available up to 800FPM, these machines can be installed in both new construction and modernization projects.

GLV-40D1

Benefits:

Consume up to 40% Less Power than Traditional Asynchronous Motors
Low Audible Noise – Best in Class Performance
Compact Design Inclusive of Outboard Bearing Post
Armless Block Type Brakes – Quiet | Fewer Moving Parts
High-Grade Rare Earth Magnets – Highly Efficient, High Torque
Smooth Stepless Motor Control
Low Force Required for Manual Brake Release


1:1 Double Wrap Traction
50% CWT Applications
Machine	Speed	Max. Capacity	Machine Weight
GLV-40D1	1000 fpm	4000 lbs	5300 lbs.

GLV-40D2

Benefits:

Compact Design Inclusive of Outboard Bearing Post
Armless Block Brakes – Quiet | Fewer Moving Parts
High-Grade Rare Earth Magnets – High Torque, Low Temperature
Lower Power Consumption
Low Audible Noise
Smooth Stepless Motor Control
Low Force Required for Manual Brake Release


2:1 Double Wrap Traction
50% CWT Applications
Machine	Speed	Max. Capacity	Machine Weight
GLV-40D2	800 fpm	4000 lbs	3190 lbs.
